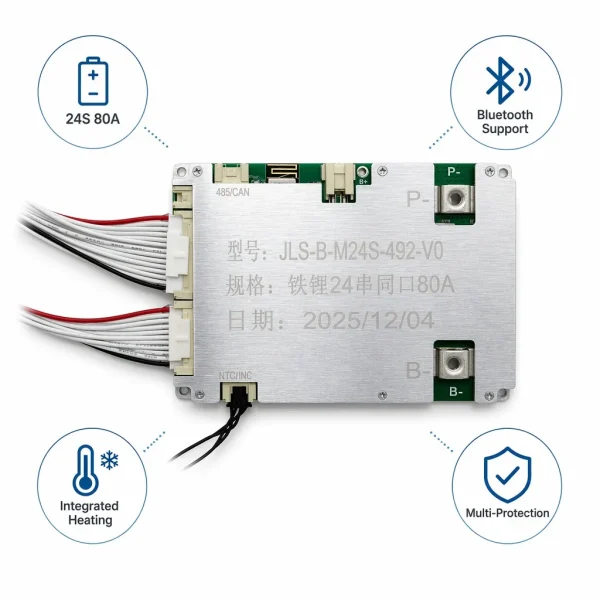

492-JLS-B Smart 24S 80A BMS with Low-Temperature Heating Function | Bluetooth & RS485 for All-Weather Energy Storage
$15.00
The 492-JLS-B is a smart 24S 80A BMS engineered for extreme reliability. Featuring a low-temperature heating function, dual NTC thermal monitoring, and Bluetooth/RS485 communication, it is the ideal choice for high-voltage industrial battery systems operating in all-weather conditions.
Industrial-Grade Smart BMS for Cold-Climate Reliability
The 492-JLS-B 24S 80A is a professional-grade Battery Management System designed for robust performance in demanding environments. Featuring advanced communication protocols and a unique integrated heating function, it ensures that your high-voltage lithium battery packs remain safe, balanced, and operational even in sub-zero temperatures.
Advanced Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 492-JLS-B |
| Cell Configuration | 24S (Li-ion/LiFePO4 Compatible) |
| Continuous Current | 80A |
| Communication | Bluetooth / RS485 / One-wire (一线通) |
| Temperature Sensing | Dual-channel NTC Sensors |
| Special Features | Built-in Low-temp Heating Logic |
Safety & Communication Intelligence
- Smart Heating Logic: Automatically triggers the external heating film when charging is attempted below freezing, ensuring chemical safety of the cells.
- Multi-Protocol Sync: Monitor real-time data on your smartphone via Bluetooth while simultaneously feeding industrial data to an EMS via RS485.
- Precise Protection: Comprehensive protection against overcharge (single cell & total), over-discharge, over-current, and short-circuits.
Typical Applications
- Cold-Region Outdoor Energy Storage Systems
- Telecom Base Station Battery Packs
- Medium-Duty Electric Mobility (Forklifts, Utility Vehicles)
- Industrial UPS & Emergency Backup Power
